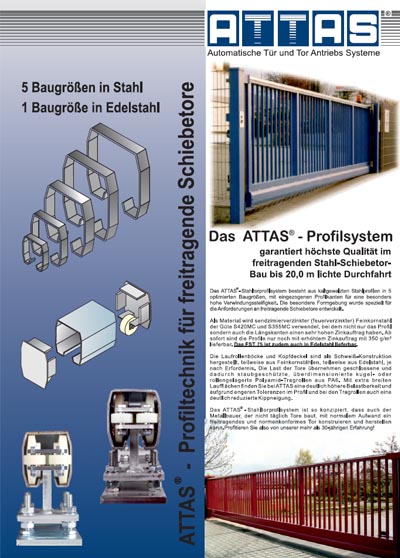

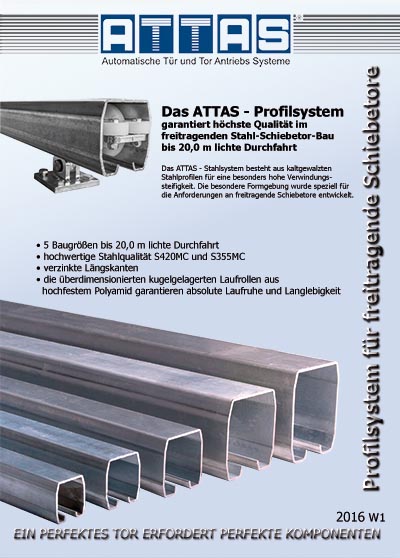

The ATTAS Profile System guarantees the highest quality in cantilever steel sliding gate construction up to 20.0 m clear passage.

Discover in our catalog:

• An overview of our 5 construction sizes for cantilever sliding gates up to 20.0 m
  clear passage in high-quality steel S420MC and S355MC
• Dimensions and drawings of individual components
• Technical documents
• Construction and foundation dimensions for building a cantilever sliding gate

Download DE

Download EN

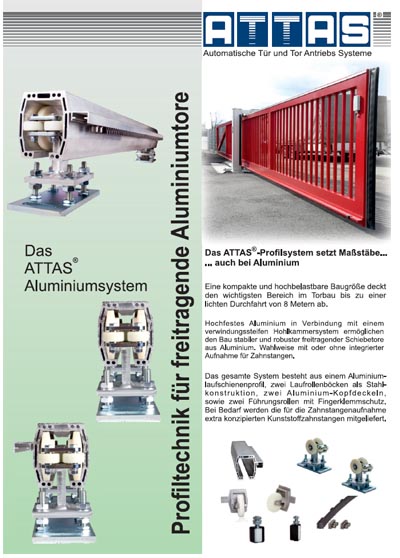

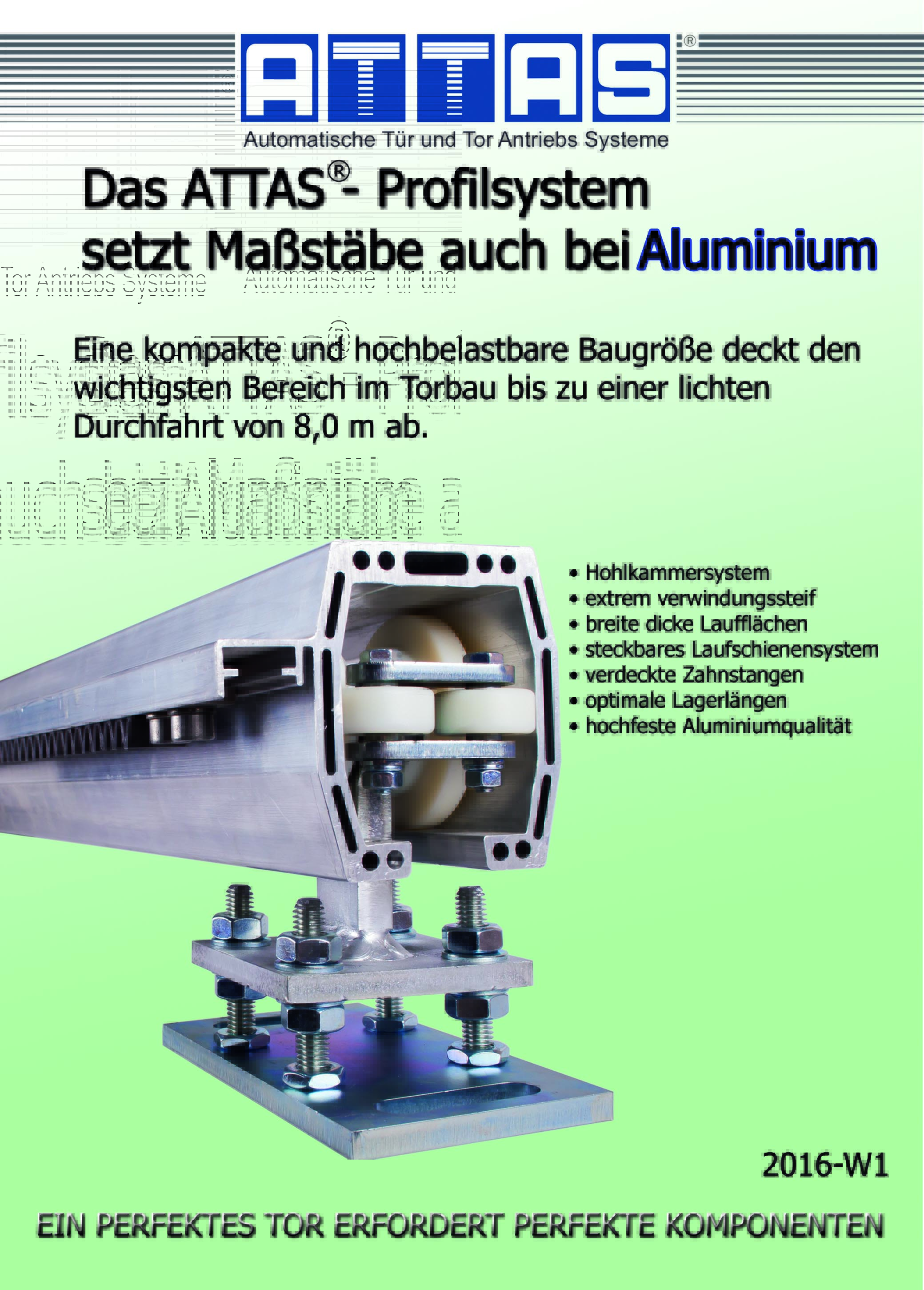

The ATTAS profile system guarantees the highest quality in cantilever aluminum sliding gate construction up to 8.0 m clear passage.

Discover in our catalog:

• An overview of our components for cantilever sliding gates made of aluminum with up to 8.0 m
  clear passage in high-quality aluminum 3.3206
• Dimensions and drawings of individual components
• Technical documents
• Construction and foundation dimensions for building a cantilever sliding gate

Download DE

Download EN

Download DE

Download EN

Download DE

Download EN

Download DE

Download EN

Download DE

Download EN

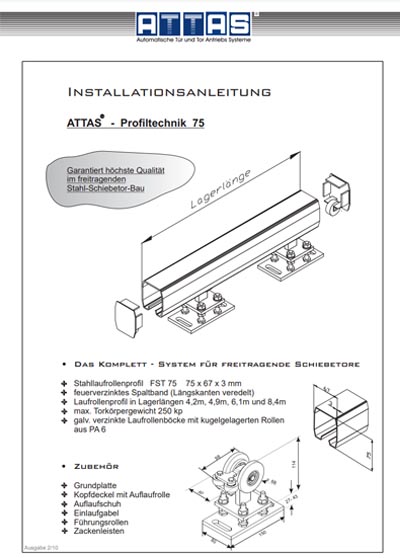

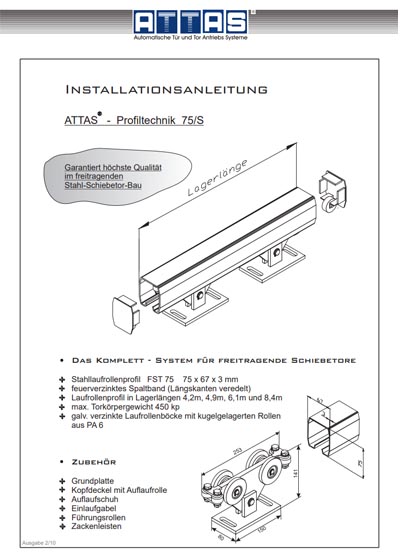

The FST 75 Profile System is the smallest size, the carriage blocks used here have 2 load-bearing rollers and are designed for smaller sliding gates with a clear passage of 4.5 m and a gate body weight of up to 250 kg.

The features of the FST 75 at a glance:

• Steel roller profile 75 x 67 x 3 mm
• Hot-dip galvanized gap strip with refined longitudinal edges
• Galvanically galvanized carriage blocks with ball-bearing rollers made of PA 6
• Fixed bearing lengths of
  - 4.2 m
  - 4.9 m
  - 6.1 m
  - 8.4 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

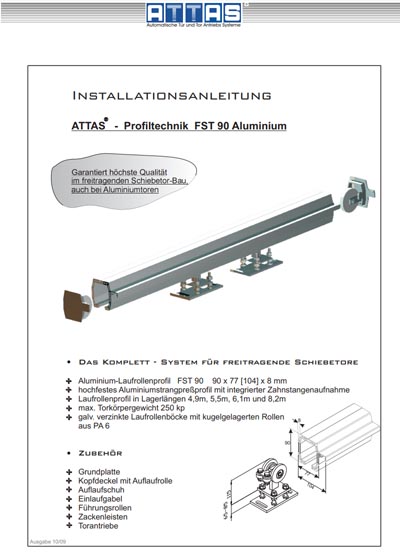

The FST 90A Profile System made of aluminum, the roller blocks used here
with 2 supporting rollers are designed for smaller sliding gates with a clearance width of 4.5 m and
a gate body weight of up to 250 kg.

The features of FST 90A at a glance:

• extremely torsion-resistant hollow chamber system made of aluminum 90 x 104 x 8 mm
• Aluminum guide rail plug-in
• Pinion extension for concealed mounting
• fixed bearing lengths of
  - 4.9 m
  - 5.5 m
  - 6.1 m
  - 8.2 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

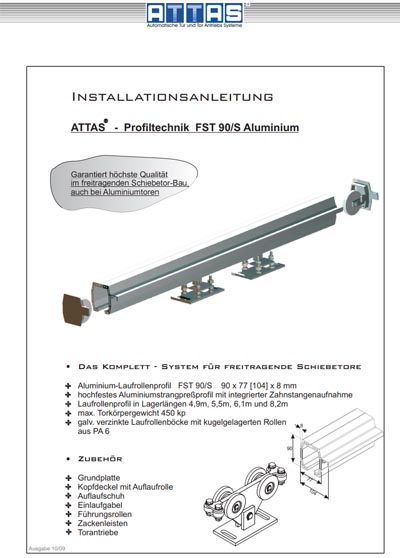

The FST 90A-S Profile System made of aluminum, the roller blocks used here
with 4 supporting rollers are designed for smaller sliding gates with a clearance width of 7.5 m and
a gate body weight of up to 450 kg.

The features of FST 90A-S at a glance:

• extremely torsion-resistant hollow chamber system made of aluminum 90 x 104 x 8 mm
• Aluminum guide rail plug-in
• Pinion extension for concealed mounting
• fixed bearing lengths of
  - 4.9 m
  - 5.5 m
  - 6.1 m
  - 8.2 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

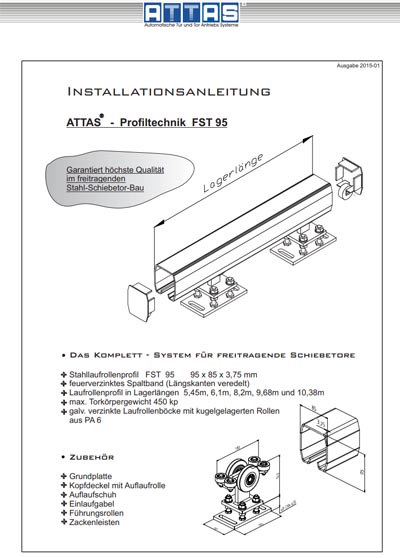

The FST 95 Profile System, the roller blocks used here
with 2 supporting rollers are designed for medium sliding gates with a clearance width of 6.0 m and
a gate body weight of up to 450 kg.

The features of FST 95 at a glance:

• Stahllaufrollenprofil 95 x 85 x 3.75 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  -   4.19 m
  -   5.45 m
  -   6.79 m
  -   8.20 m
  -   9.68 m
  - 10.38 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

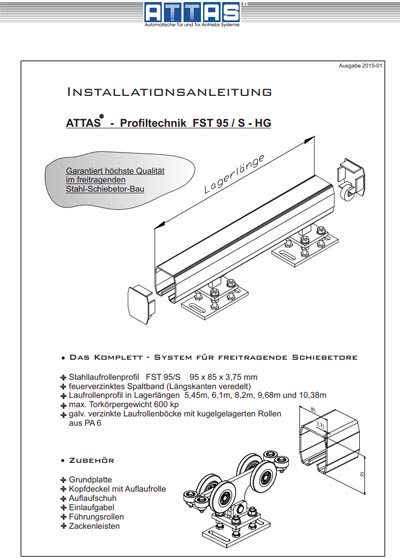

The FST 95/S Profile System, the roller blocks used here
with 4 supporting rollers are designed for medium sliding gates with a clearance width of 7.5 m and
a gate body weight of up to 600 kg.

The features of FST 95 at a glance:

• Stahllaufrollenprofil 95 x 85 x 3.75 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  -   4.19 m
  -   5.45 m
  -   6.79 m
  -   8.20 m
  -   9.68 m
  - 10.38 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

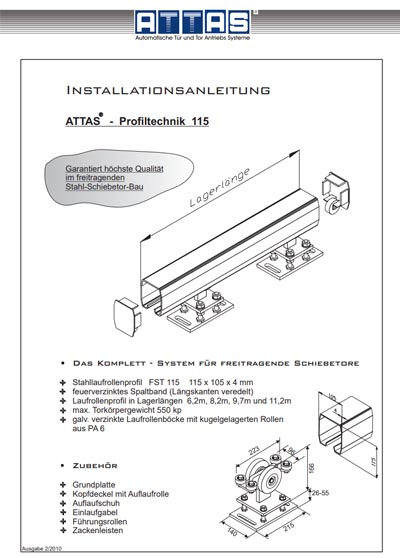

The FST 115 Profile System, the roller blocks used here
with 2 supporting rollers are designed for medium to large sliding gates with a clearance width of 6.0 m and
a gate body weight of up to 550 kg.

The features of FST 115 at a glance:

• Stahllaufrollenprofil 115 x 105 x 4 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  -   6.1 m
  -   8.2 m
  -   9.7 m
  - 11.2 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

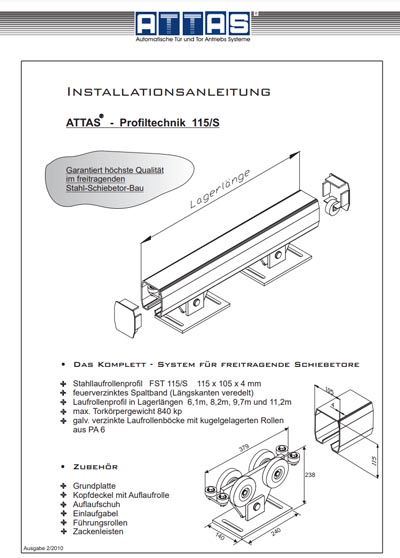

The FST 115/S Profile System, the roller blocks used here
with 4 supporting rollers are designed for medium to large sliding gates with a clearance width of 8.0 m and
a gate body weight of up to 840 kg.

The features of FST 115 at a glance:

• Stahllaufrollenprofil 115 x 105 x 4 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  -   6.1 m
  -   8.2 m
  -   9.7 m
  - 11.2 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

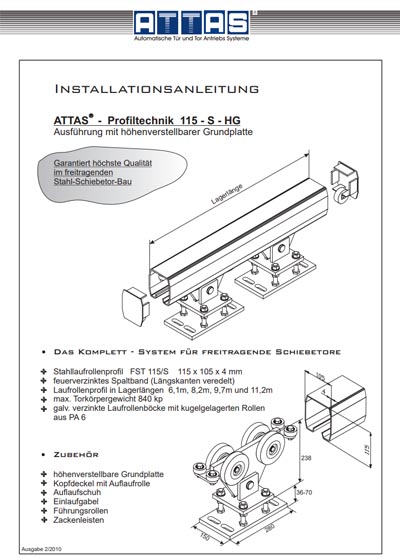

The FST 115/S - HG Profile System with height-adjustable base plate, the roller blocks used here with 4 supporting rollers are designed for medium to large sliding gates with a clearance width of 8.0 m and a gate body weight of up to 840 kg.

The features of FST 115 at a glance:

• Stahllaufrollenprofil 115 x 105 x 4 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  -   6.1 m
  -   8.2 m
  -   9.7 m
  - 11.2 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

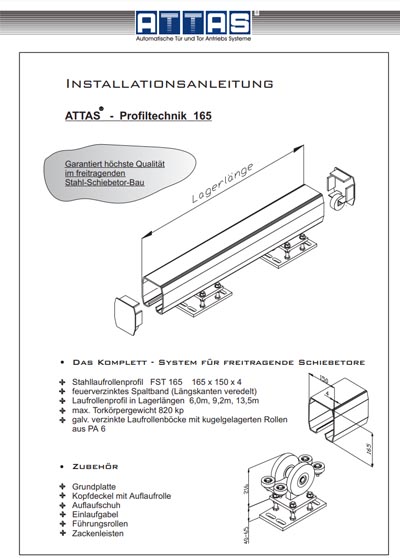

The FST 165 Profile System, the roller blocks used here with 2 supporting rollers are designed for large sliding gates with a clearance width of 9.0 m and a gate body weight of up to 820 kg.

The features of FST 165 at a glance:

• Stahllaufrollenprofil 165 x 150 x 4 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  -   6.0 m
  -   9.2 m
  -   9.7 m
  - 11.2 m
  - 12.5 m
  - 13.5 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

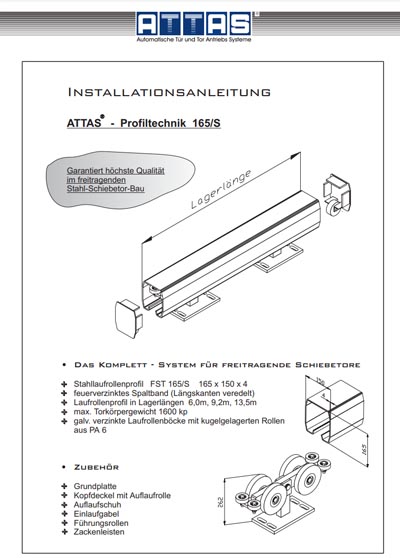

The FST 165/S Profile System, the roller blocks used here with 4 supporting rollers are designed for large sliding gates with a clearance width of 13.0 m and a gate body weight of up to 1700 kg.

The features of FST 165 at a glance:

• Stahllaufrollenprofil 165 x 150 x 4 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  -   6.0 m
  -   9.2 m
  -   9.7 m
  - 11.2 m
  - 12.5 m
  - 13.5 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

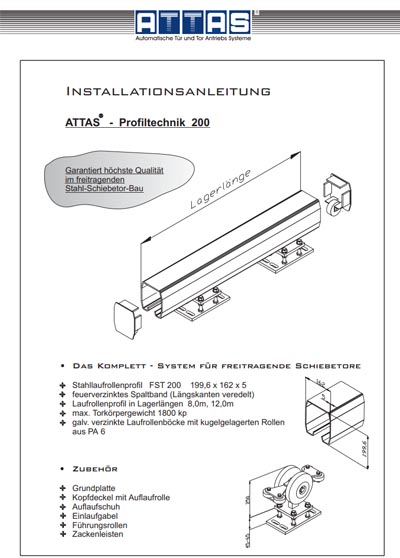

The FST 200 Profile System, the roller blocks used here with 2 supporting rollers are designed for large sliding gates with a clearance width of 11.5 m and a gate body weight of up to 1800 kg.

The features of FST 200 at a glance:

• Stahllaufrollenprofil 199.6 x 162 x 5 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  - 6.0 m
  - 8.0 m
  - 12.0 m
  - 13.9 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

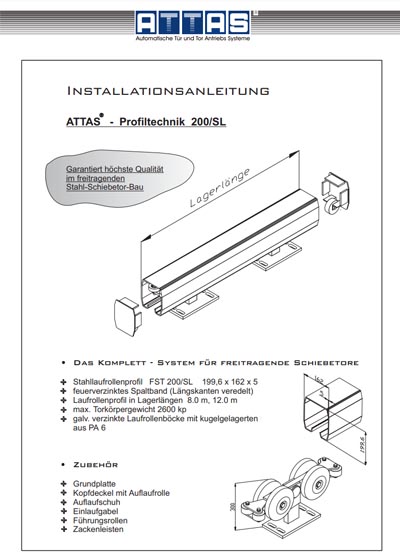

The FST 200/SL Profile System, the roller blocks used here with 4 supporting rollers are designed for large sliding gates with a clearance width of 14.0 m and a gate body weight of up to 2600 kg.

The features of FST 200 at a glance:

• Stahllaufrollenprofil 199.6 x 162 x 5 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  - 6.0 m
  - 8.0 m
  - 12.0 m
  - 13.9 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download

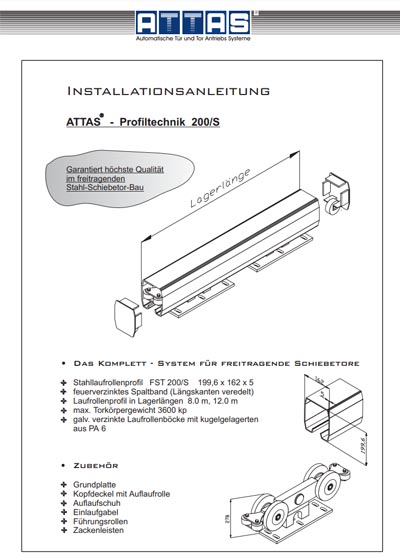

The FST 200/S Profile System, the roller blocks used here with 4 supporting rollers are designed for large sliding gates with a clearance width of 20.0 m and a gate body weight of up to 3600 kg.

The features of FST 200 at a glance:

• Stahllaufrollenprofil 199.6 x 162 x 5 mm
• galvanized slit strip with refined longitudinal edges
• galvanized roller blocks with ball-bearing rollers made of PA 6
• fixed bearing lengths of
  - 6.0 m
  - 8.0 m
  - 12.0 m
  - 13.9 m
• Construction and foundation dimensions for the construction of a cantilever sliding gate

Download
